HPE DL360 Gen9服务器PCI Bus Error
警告
服务器适合长时间加电运行，不适合反复开关:
我感觉二手服务器尤其脆弱，不适合长时间关机。
我的 HPE DL360 Gen9服务器 是2021年9月购买，算起来持续使用了2年半。不过，最近半年因为失业( 凡是过往 皆为序章 )外出旅行，所以关机了半年。这应该是这台受到伤害的最大原因，受到上海潮湿闷热天气的折磨之后，终于在今天开机出现了严重的错误告警:
从 Integrated Management Log (CSV格式)可以看到:
ID |
Severity |
Class |
Last Update |
Initial Update |
Count |
Description |
|---|---|---|---|---|---|---|
246 |
Critical |
System Error |
08/08/2024 01:31 |
[NOT SET] |
8 |
An Unrecoverable System Error (NMI) has occurred (Service Information: 0x00000000, 0x00000000) |
245 |
Critical |
System Error |
08/08/2024 01:29 |
08/08/2024 01:29 |
1 |
An Unrecoverable System Error (NMI) has occurred (Service Information: 0x00000000, 0x00000000) |
244 |
Critical |
PCI Bus |
08/08/2024 01:31 |
[NOT SET] |
40 |
PCI Bus Error (Slot 1, Bus 0, Device 3, Function 2) |
243 |
Critical |
PCI Bus |
08/08/2024 01:31 |
[NOT SET] |
17 |
PCI Bus Error (Slot 1, Bus 0, Device 3, Function 0) |
242 |
Critical |
OS |
08/08/2024 01:28 |
[NOT SET] |
1 |
User Remotely Initiated NMI Switch |
241 |
Critical |
OS |
08/08/2024 01:28 |
08/08/2024 01:28 |
1 |
User Remotely Initiated NMI Switch |
240 |
Critical |
PCI Bus |
08/08/2024 01:31 |
[NOT SET] |
118 |
Uncorrectable PCI Express Error (Slot 1, Bus 0, Device 3, Function 2, Error status 0x00000020) |
239 |
Critical |
System Error |
08/08/2024 01:31 |
[NOT SET] |
83 |
Unrecoverable System Error (NMI) has occurred. System Firmware will log additional details in a separate IML entry if possible |
238 |
Critical |
PCI Bus |
08/08/2024 01:31 |
[NOT SET] |
49 |
Uncorrectable PCI Express Error (Slot 1, Bus 0, Device 3, Function 0, Error status 0x00000020) |
237 |
Critical |
PCI Bus |
08/08/2024 01:28 |
08/08/2024 01:28 |
1 |
Uncorrectable PCI Express Error (Slot 1, Bus 0, Device 3, Function 0, Error status 0x00000020) |
236 |
Critical |
System Error |
08/08/2024 01:28 |
08/08/2024 01:28 |
1 |
Unrecoverable System Error (NMI) has occurred. System Firmware will log additional details in a separate IML entry if possible |
235 |
Critical |
PCI Bus |
08/08/2024 01:28 |
08/08/2024 01:28 |
1 |
PCI Bus Error (Slot 1, Bus 0, Device 3, Function 0) |
234 |
Caution |
POST Message |
08/08/2024 01:25 |
[NOT SET] |
1 |
POST Error: 295-DIMM Failure - Uncorrectable Memory Error - Processor 1, DIMM 9. This memory will not be available to the operating system. ACTION: Replace the failed DIMM to restore the full amount of memory. |
233 |
Caution |
POST Message |
08/08/2024 01:25 |
[NOT SET] |
1 |
POST Error: 207-Memory initialization error on Processor 1, DIMM 8. The operating system may not have access to all of the memory installed in the system. |
232 |
Caution |
POST Message |
08/08/2024 01:25 |
08/08/2024 01:25 |
1 |
POST Error: 207-Memory initialization error on Processor 1, DIMM 9. The operating system may not have access to all of the memory installed in the system. |
太不幸了，两个月前还正常启动的服务器罢工了...
排查

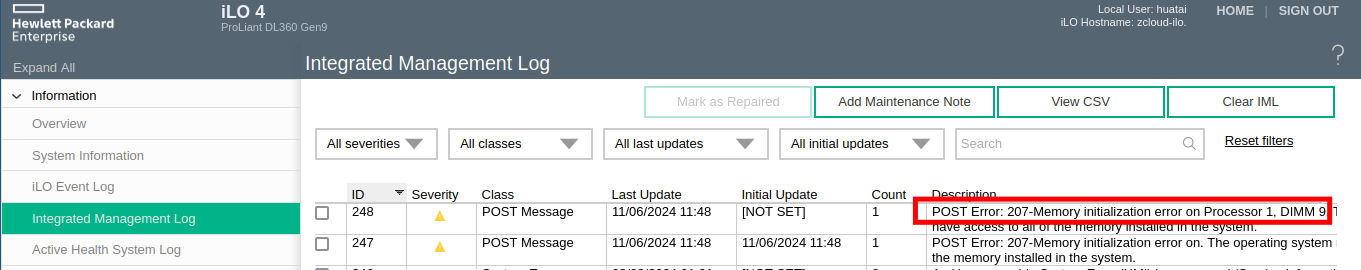

HP服务器的 HP服务器iLO技术 提供了非常方便的图形管理，通过检查管理日志可以看到错误集中在

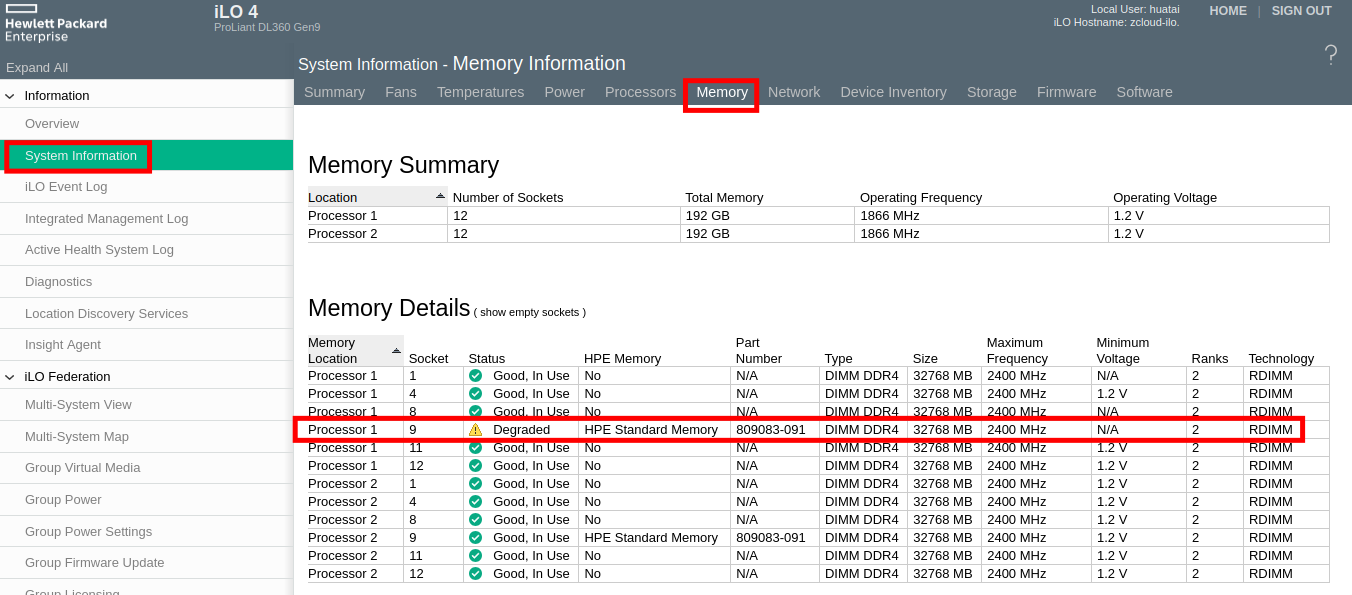

Processor 1的两个内存插槽上DIMM 8和DIMM 9，这表明要么是内存条故障了，要么是内存接触不良:考虑到同时出现两根内存条硬件故障可能性较低，所以我倾向于是内存条插入连接不良，也就是通过内存条重新插拔可能能够解决这个问题

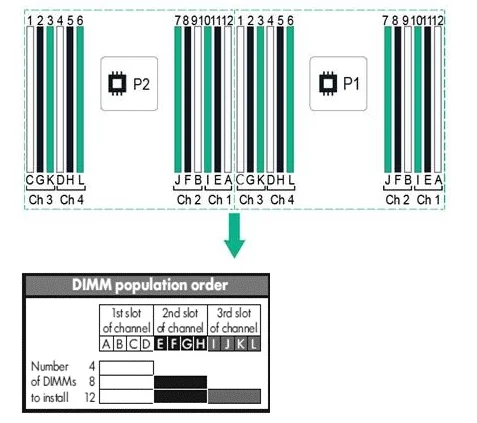

需要注意 HP DL360 Gen9 内存安装 顺序:
HPE DL360 Gen9 内存插槽顺序

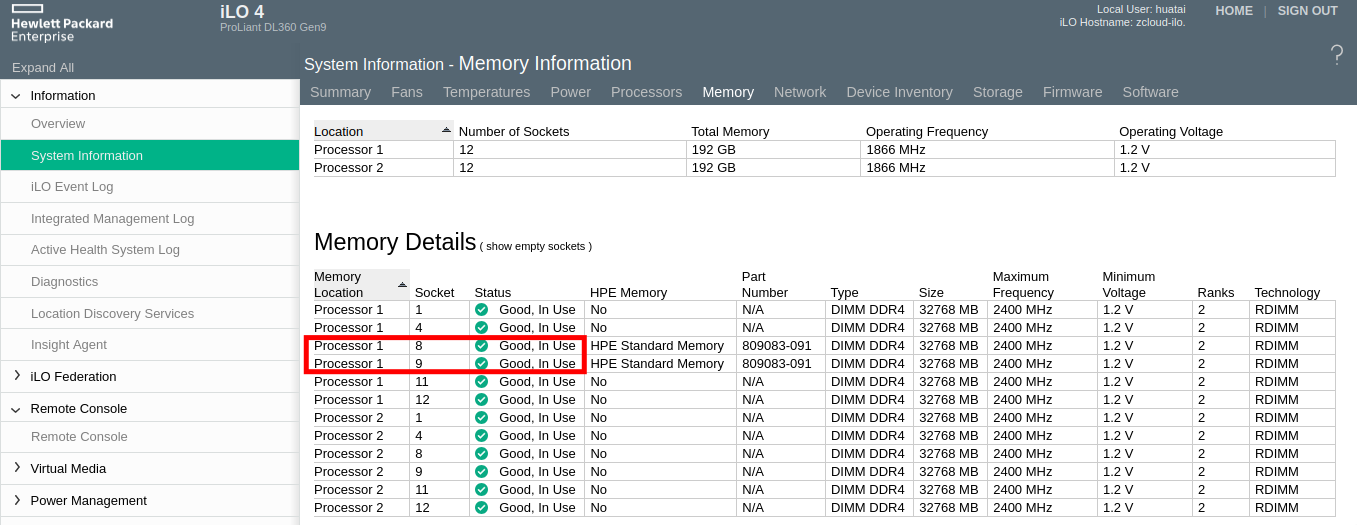

重新多次插拔出现报错的DIMM 内存，然后重新开机。果然，系统内存检测就完全正常，从 HP服务器iLO技术 的
System Information >> Memory Information查看，可以看到刚才报错的DIMM内存条已经正常工作(状态Good, In Use:
再次发作
在使用了一段时间之后，2025年2月，这台老掉牙的 HPE ProLiant DL360 Gen9服务器 终于拒绝启动。我马上买了一台 HPE ProLiant DL380 Gen9服务器 准系统来替换，当时推测是主板问题。而且确实CPU换到新的HP DL380 gen9能够正常启动。
不过很不幸， 经过几天开关机，服务器再次拒绝启动，不过 iLO 管理界面可以登陆，检查 Integrated Management Log 显示报错
ID |
Severity |
Class |
Last Update |
Initial Update |
Count |
Description |
|---|---|---|---|---|---|---|
153 |
Critical |
System Error |
02/25/2025 13:33 |
[NOT SET] |
1 |
An Unrecoverable System Error (NMI) has occurred (Service Information: 0x00000000, 0x00000000) |
152 |
Critical |
PCI Bus |
02/25/2025 13:33 |
[NOT SET] |
1 |
Uncorrectable PCI Express Error (Slot 2, Bus 0, Device 3, Function 2, Error status 0x00004020) |
151 |
Critical |
System Error |
02/25/2025 13:33 |
02/25/2025 13:33 |
1 |
An Unrecoverable System Error (NMI) has occurred (Service Information: 0x00000000, 0x00000000) |
150 |
Critical |
PCI Bus |
02/25/2025 13:33 |
02/25/2025 13:33 |
1 |
Uncorrectable PCI Express Error (Slot 2, Bus 0, Device 3, Function 2, Error status 0x00000020) |
149 |
Critical |
System Error |
02/25/2025 13:33 |
02/25/2025 13:33 |
1 |
Unrecoverable System Error (NMI) has occurred. System Firmware will log additional details in a separate IML entry if possible |
148 |
Critical |
System Error |
02/25/2025 13:31 |
02/25/2025 13:31 |
1 |
Server Critical Fault (Service Information: Input Power Loss, Power Supply, Power Supply 1 (03h) Power Supply 2 (03h)) |
147 |
Critical |
PCI Bus |
02/25/2025 13:33 |
02/25/2025 13:30 |
2 |
PCI Bus Error (Slot 2, Bus 0, Device 3, Function 2) |
由于我已经更换了服务器主机(主板)，所以我怀疑不是主板故障，而是我的旧服务器CPU出现了异常。不过，我尝试将 HPE ProLiant DL380 Gen9服务器 的PCIe扩展板上第2个PCIe存储卡拿掉以后，暂时恢复了正常启动。但我怀疑还会出现故障。
